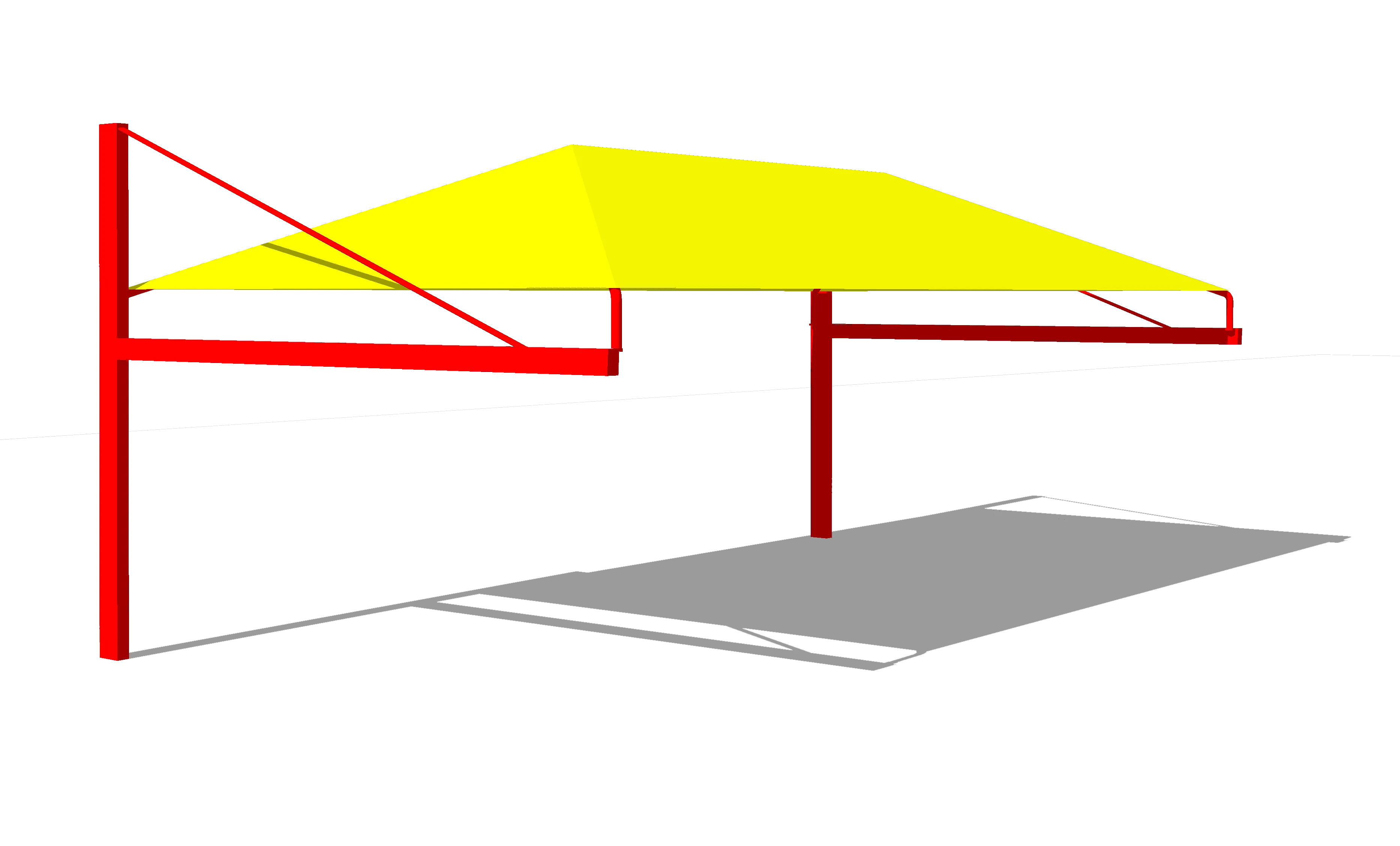

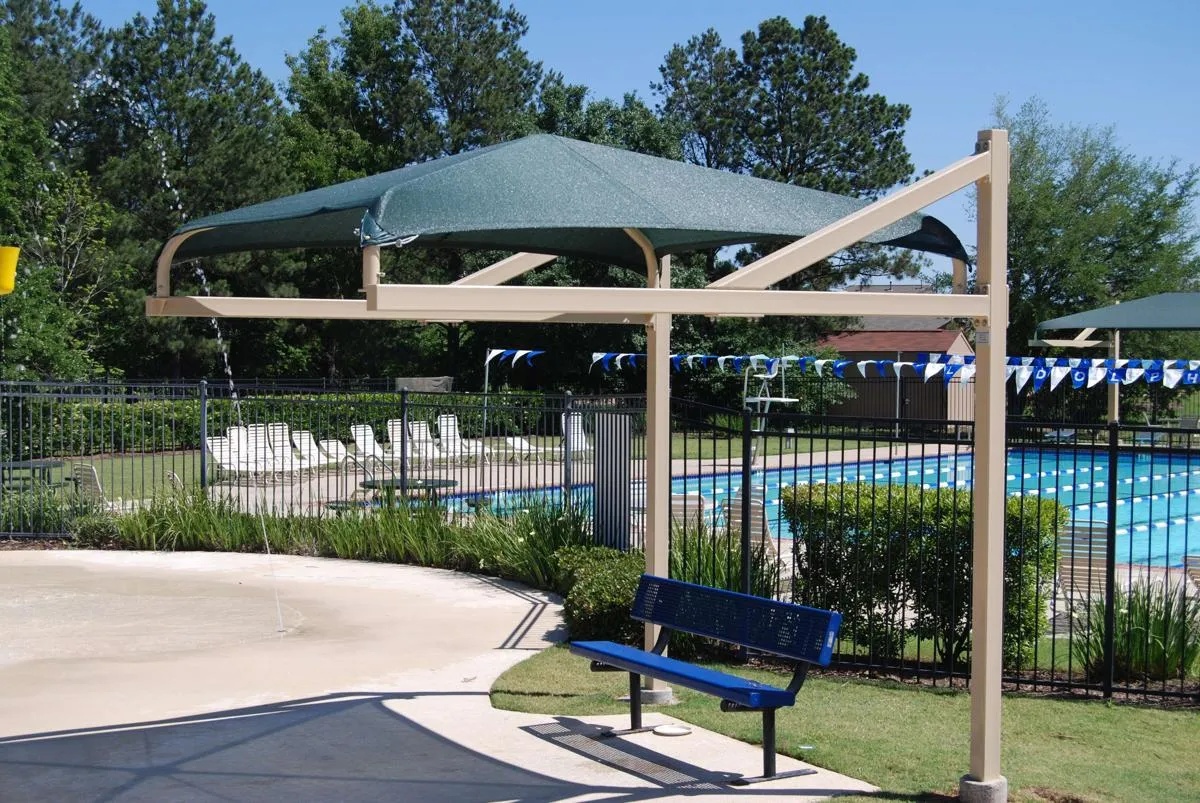

Full Cantilever Shade Structures are great for places requiring shade but with a limited space for columns or posts. A cantilever post is used to provide support using horizontal arms, opposed to additional vertical posts. This clean design utilizes two upright structural posts. Less posts are needed to mount the frame while still providing an enormous amount of shade. Length and width purchasing dimensions reflect shade fabric size. Structural footprint is 1' larger in each direction due to the nature of cantilever design. With eave heights ranging from 8’ to 16’ high, this structure is available with a Surface or in-ground Mount.
Warp lbf/inch 91
Weft lbf/inch 162
Fabric Mass Minimum:
5.8 oz./Sq. Yd.
A minimum of 8 years of continuous exposure.
Minimum fading allowed after 5 years.
Minimum Temp 13o – Maximum Temp 176o
CA Fire Marshall Title 19
All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness.
Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge.
All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate.
The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame.
Arm Support Fittings:
The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame.
Shade Tarp Material:
Material made of Shadeoline FR/Commercial 95 by Gale Pacific
Flame Spread – 5
Smoke Density – 95
UV Protection 95:
Windload with a 3 second gust at 139 MPH
Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty
Steelwork 10 years
