| Frame Color | Yellow, Blue, Orange, Fuschia, White, Brown, Burgundy, Teal Blue, Red, Sky Blue, Spring Green, Purple, Gray, Green, Tan, Black |
|---|---|
| Shade Fabric Color Options | Desert Sand, Yellow, Cayenne, Deep Ochre, Gun Metal, Steel Gray, Navy Blue, Turquoise, Aquatic Blue, Sky Blue, Rivergum Green, Brunswick Green, Black, Bottle Green, Purple, Silver, Sun Blaze, True Blue |
Color Sheet
Warranty

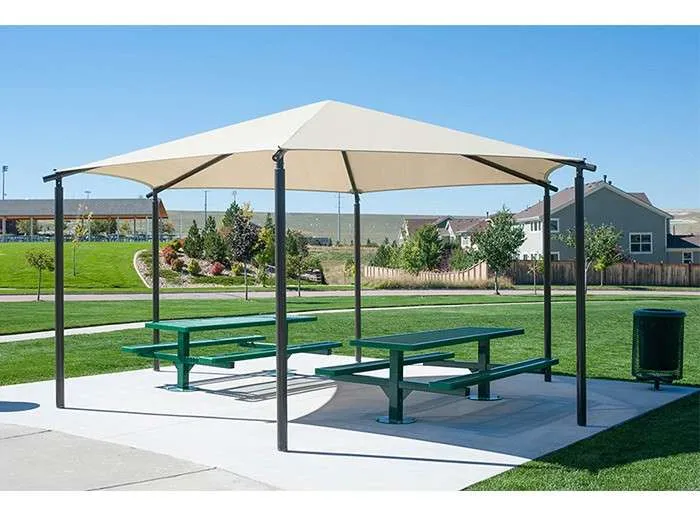

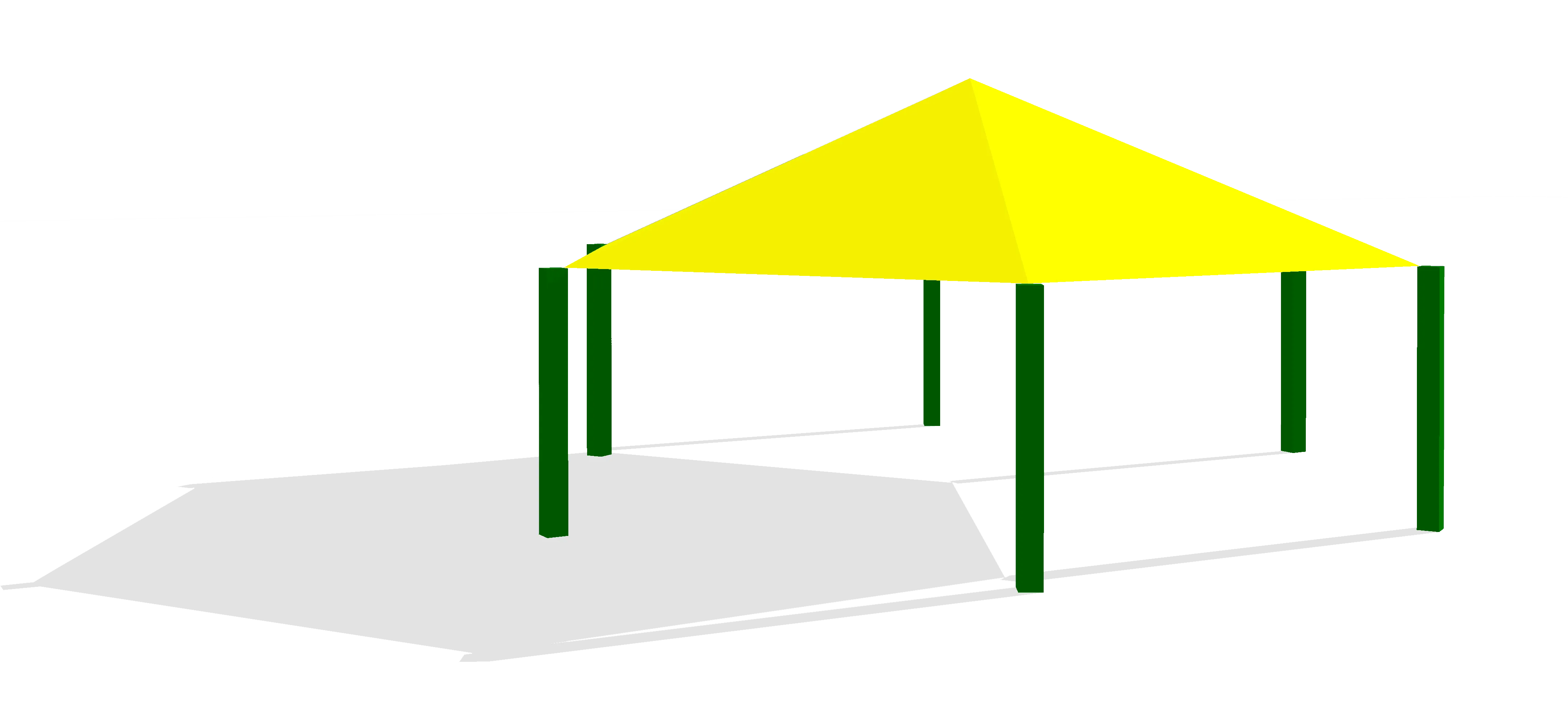

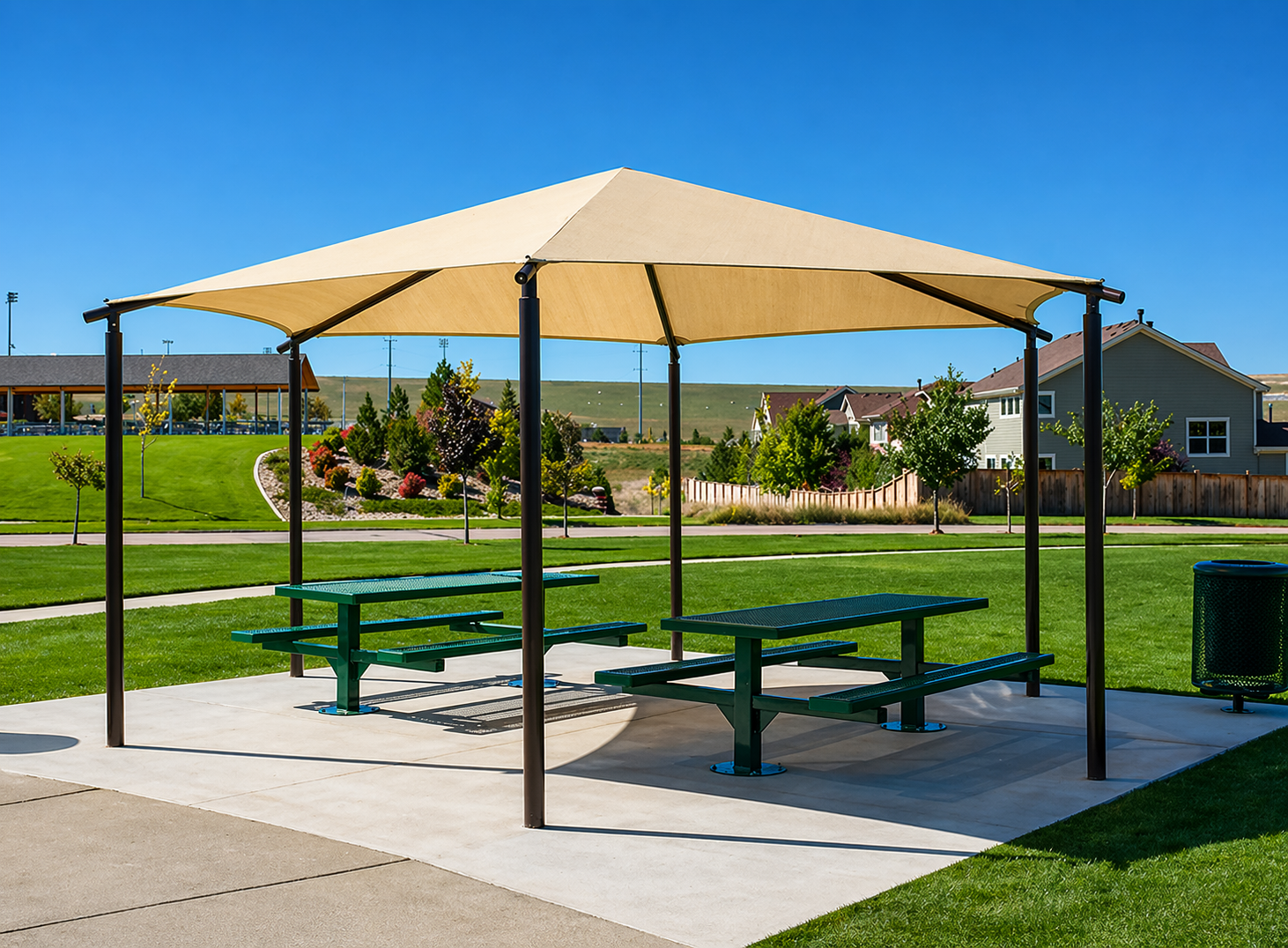

Hexagon Hip Roof Shade Structures are a visually-appealing way to lower the temperature and protect children from nature’s elements while at play. The clean peak roof design and six post frame offers ultimate protection from Mother Nature's elements, providing up to 97% UV protection. With eave heights ranging from 8’ to 16’ high, this structure is available with a Surface or in-ground Mount.
Our shade structures come in a variety of sizes and price ranges. Contact our team for the most accurate price estimate.
“We couldn’t be happier with the products we received! Most importantly the one on one service from Daria was nothing less than outstanding!”
- Dani
See More| Shadecloth Specifications | |||
|---|---|---|---|
| Tensile Strength: | ASTM 5035-95 | Warp lbf/inch 91 | Weft lbf/inch 162 |
| Fabric Mass Minimum: | 5.8 oz./Sq. Yd. | ||
| Life expectancy: | A minimum of 8 years of continuous exposure. | ||
| Fading: | Minimum fading allowed after 5 years. | ||
| Temperature Stability: | Minimum Temp 13o – Maximum Temp 176o | ||
| Fire Rating: | CA Fire Marshall Title 19 | ||
| Weather-ability: | ASTM G53 | ||
| Structure Specifications | |
|---|---|
Upright Posts: | All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness. |
| Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge. |
|
| All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate. | |
Top Frame: | The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame. |
Arm Support Fittings: | The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame. |
| Shade Tarp Material: | Material made of Shadeoline FR/Commercial 95 by Gale Pacific |
Test Result: | Flame Spread – 5 |
| Smoke Density – 95 | |
| UV Protection 95: | Wind Loads up to 95 mph with 3-second gusts up to 110 mph |
Warranty: | Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty |
| Steelwork 10 years | |
