Pyramid Square Shade Structure

Starting At $3,890.00 Add to Cart

Specifications

Frame Color

Yellow, Blue, Orange, Fuschia, White, Brown, Burgundy, Teal Blue, Red, Sky Blue, Spring Green, Purple, Gray, Green, Tan, Black

Shade Fabric Color Options

Desert Sand, Yellow, Cayenne, Deep Ochre, Gun Metal, Steel Gray, Navy Blue, Turquoise, Aquatic Blue, Sky Blue, Rivergum Green, Brunswick Green, Black, Bottle Green, Purple, Silver, Sun Blaze, True Blue

Downloads:

Color Sheet Warranty

Pyramid Square Shade Structure

Starting At $3,890.00Add to Cart

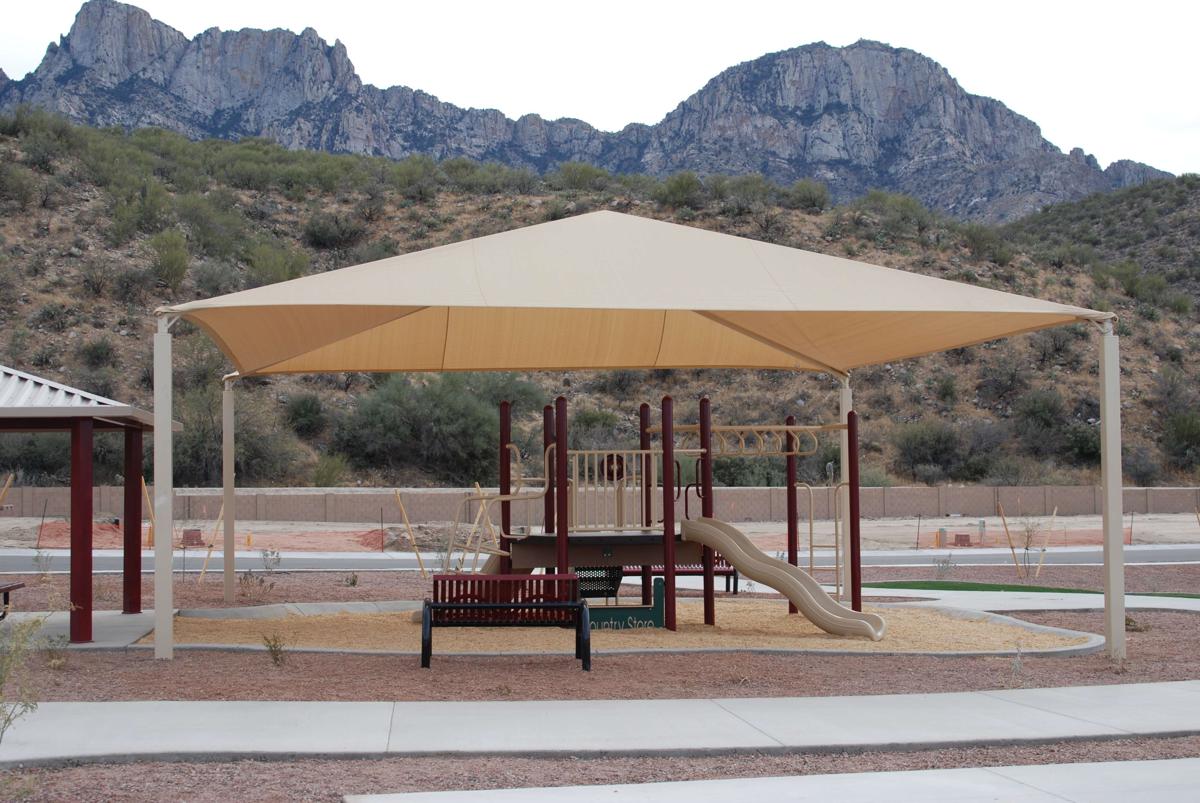

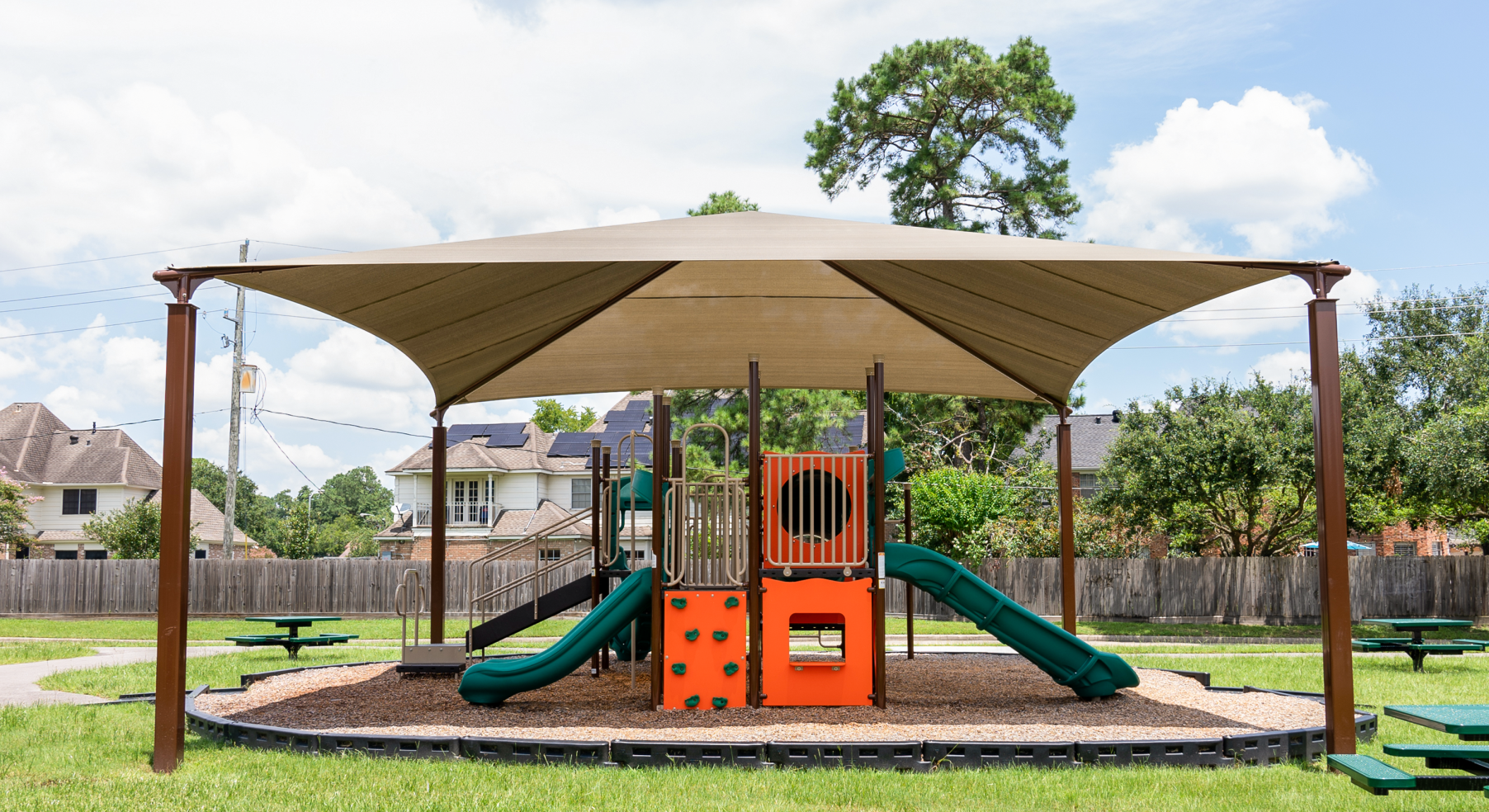

The Pyramid Square Shade Structure is one of our most popular and cost-effective shade options. Featuring a clean peak roof design this structure blocks up to 97% of the sun's harmful UV rays. From pools to playgrounds, this square roof design offers superior sun coverage while accenting the existing surroundings. With eave heights ranging from 8’ to 14’ high, this structure is available with a surface or in-ground Mount.

See what our happy customers are saying:

“We couldn’t be happier with the products we received! Most importantly the one on one service from Daria was nothing less than outstanding!”

- Dani

See More

Applications

  • Playgrounds
  • Picnic Areas
  • Pools
  • Schools
Shadecloth Specifications
Tensile Strength:ASTM 5035-95Warp lbf/inch 91Weft lbf/inch 162
Fabric Mass Minimum:5.8 oz./Sq. Yd.
Life expectancy:A minimum of 8 years of continuous exposure.
Fading:Minimum fading allowed after 5 years.
Temperature Stability: Minimum Temp 13o – Maximum Temp 176o
Fire Rating:CA Fire Marshall Title 19
Weather-ability:ASTM G53
Structure Specifications




Upright Posts:
All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness.
Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge.
All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate.

Top Frame:
The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame.

Arm Support Fittings:
The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame.
Shade Tarp Material:Material made of Shadeoline FR/Commercial 95 by Gale Pacific

Test Result:
Flame Spread – 5
Smoke Density – 95
UV Protection 95:Wind Loads up to 95 mph with 3-second gusts up to 110 mph

Warranty:
Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty
Steelwork 10 years
  • Frame Color
  • Shade Fabric Color
Starting at: $3,890.00
