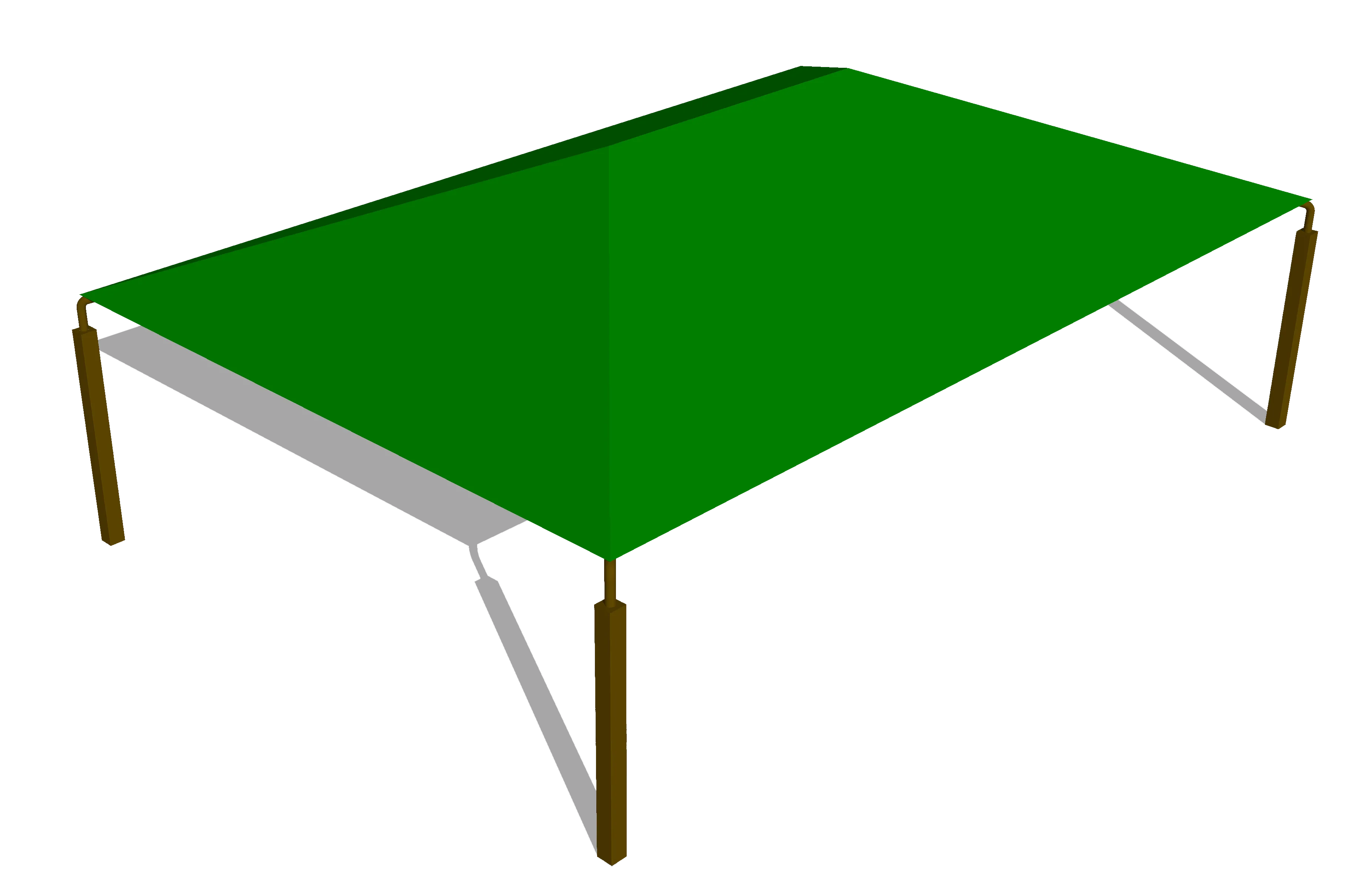

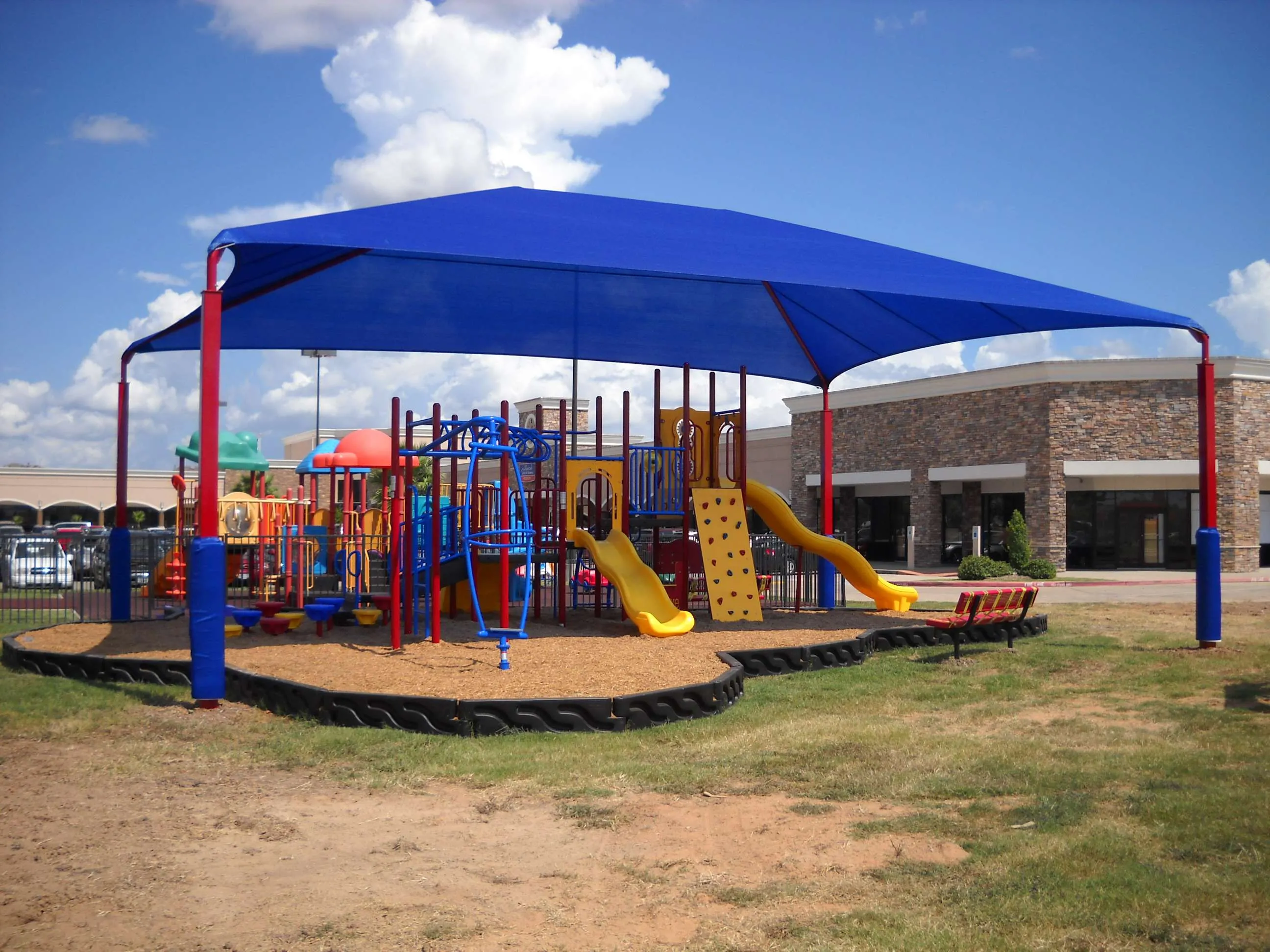

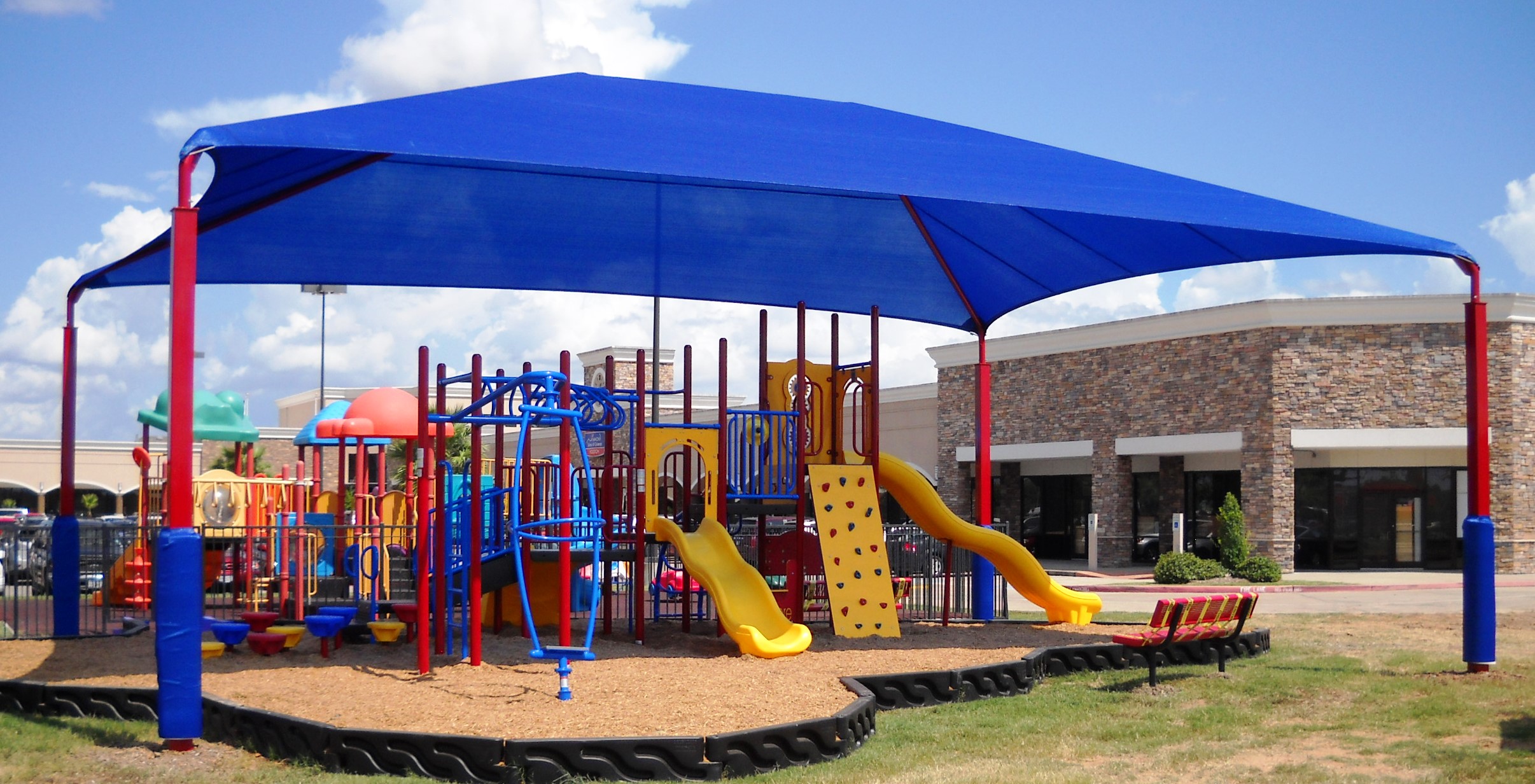

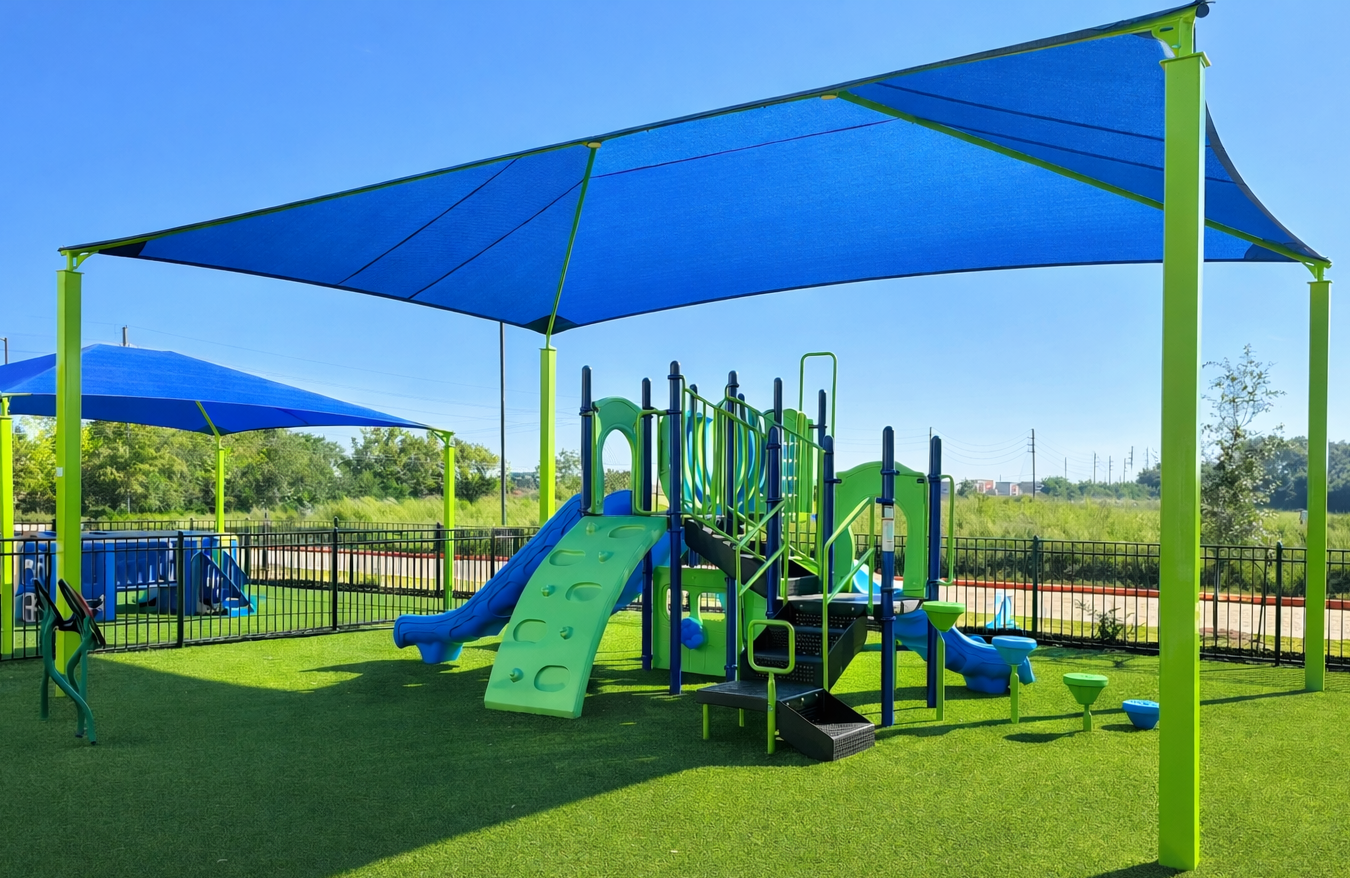

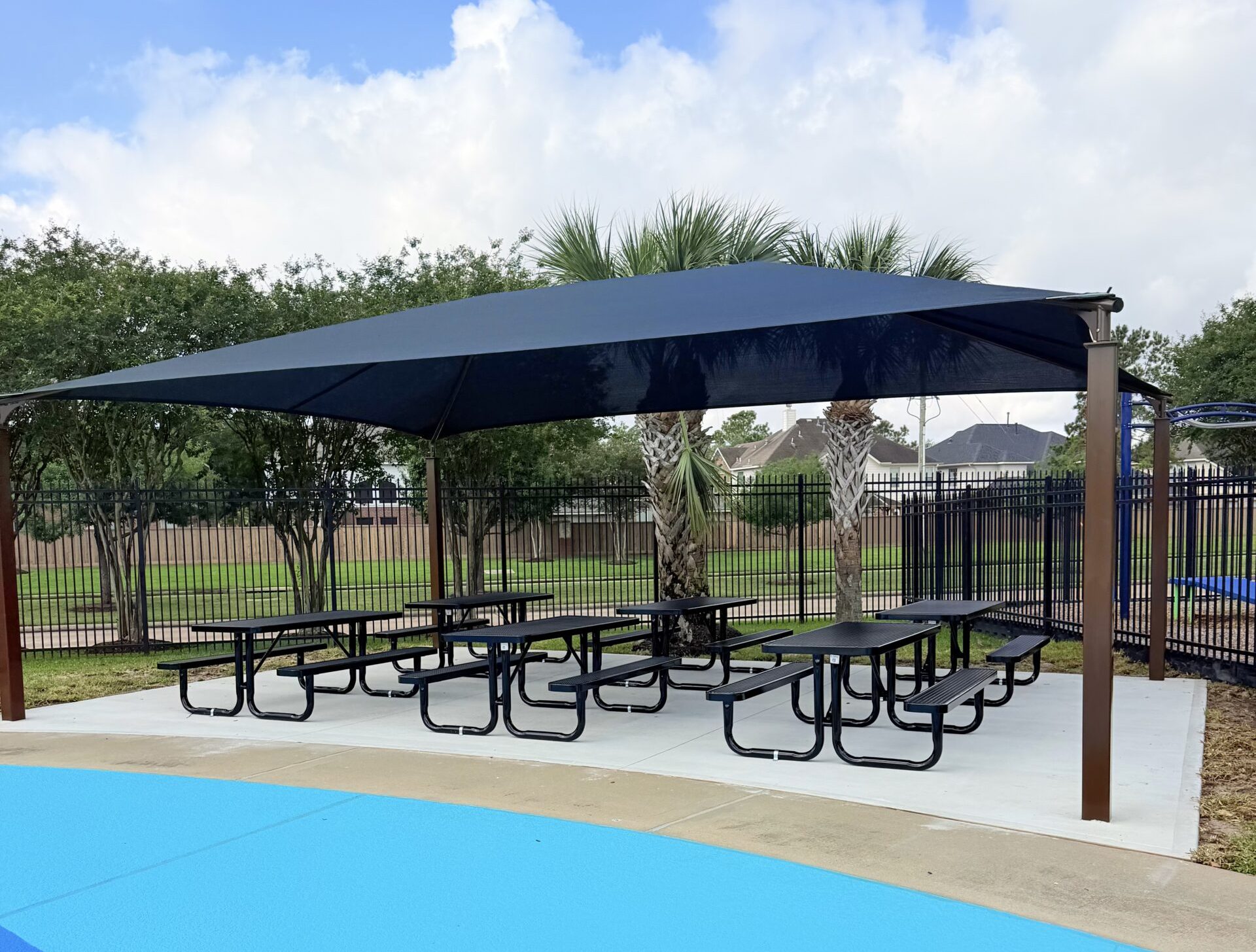

The Rectangle Hip Roof Shade Structure is our most popular and cost effective shade option. Additionally it is the most versatile shade design on the market and can be used in almost any application. From pools to playgrounds, this hip roof design offers superior sun coverage while accenting the existing surroundings. With eave heights ranging from 8’ to 16’ high, this structure is available with a Surface or in-ground Mount.
Warp lbf/inch 91
Weft lbf/inch 162
Fabric Mass Minimum:
5.8 oz./Sq. Yd.
A minimum of 8 years of continuous exposure.
Minimum fading allowed after 5 years.
Minimum Temp 13o – Maximum Temp 176o
CA Fire Marshall Title 19
All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness.
Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge.
All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate.
The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame.
Arm Support Fittings:
The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame.
Shade Tarp Material:
Material made of Shadeoline FR/Commercial 95 by Gale Pacific
Flame Spread – 5
Smoke Density – 95
UV Protection 95:
Wind Loads up to 95 mph with 3-second gusts up to 110 mph
Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty
