| Frame Color | Yellow, Blue, Orange, Fuschia, White, Brown, Burgundy, Teal Blue, Red, Sky Blue, Spring Green, Purple, Gray, Green, Tan, Black |
|---|---|
| Shade Fabric Color Options | Desert Sand, Yellow, Cayenne, Deep Ochre, Gun Metal, Steel Gray, Navy Blue, Turquoise, Aquatic Blue, Sky Blue, Rivergum Green, Brunswick Green, Black, Bottle Green, Purple, Silver, Sun Blaze, True Blue |
Color Sheet
Warranty

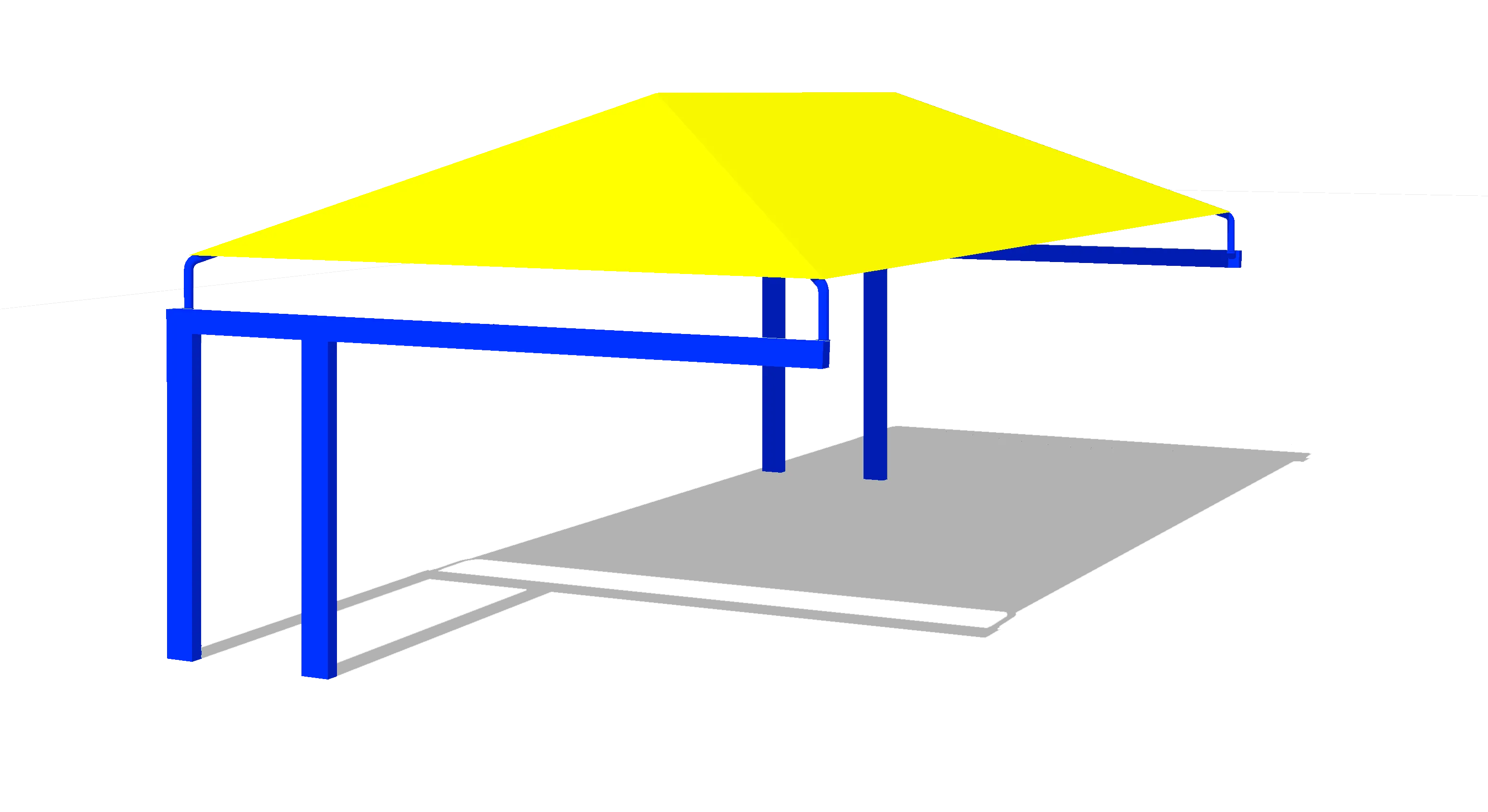

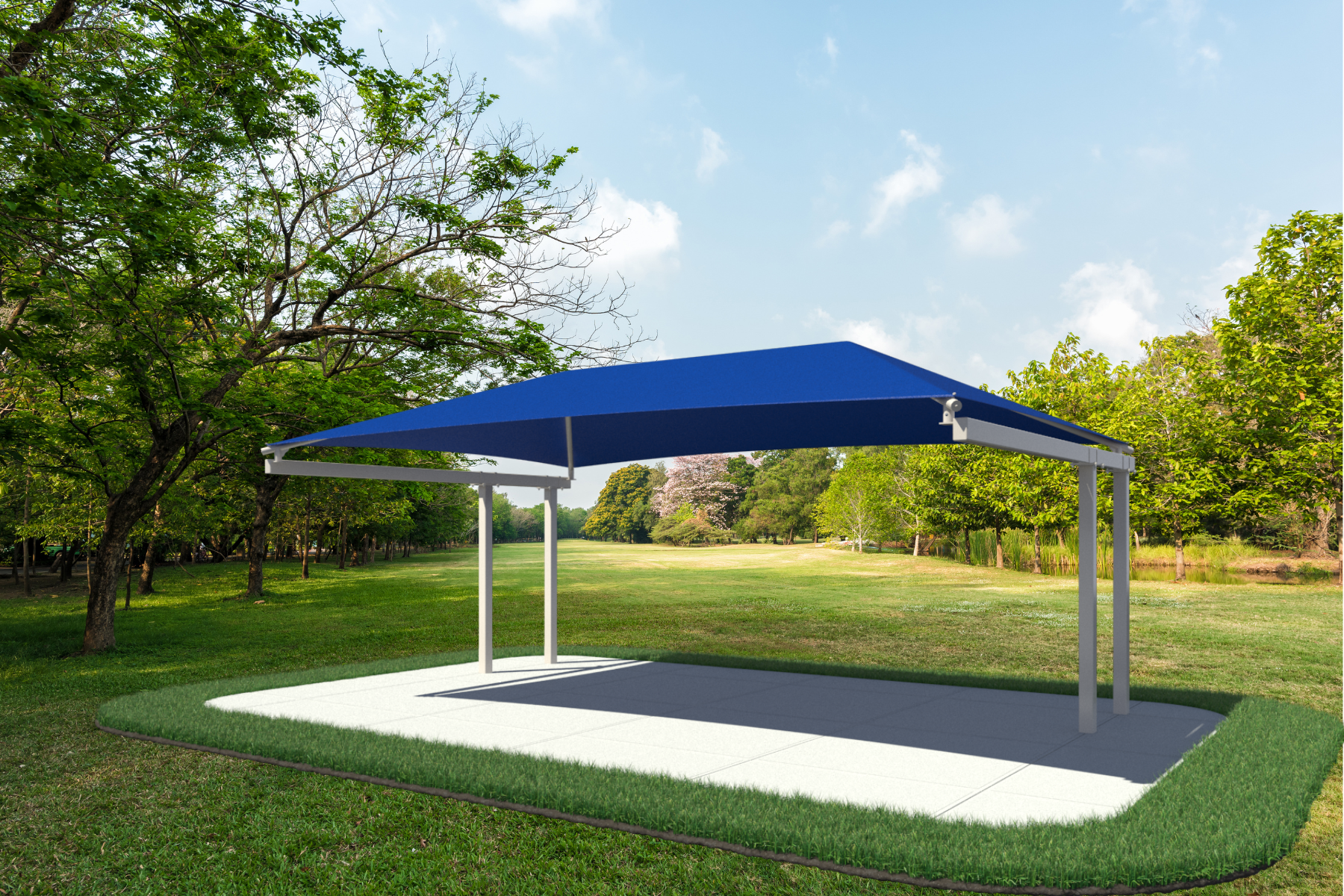

The Semi Cantilever Shade Structure design offers the same optimum area utilization benefits of the cantilever-full shade canopy design but with two recessed posts designed to limit encroachment in the shaded area. The four posts are engineered to be closer together adding stability and rigidity to the structure. Length and width purchasing dimensions reflect shade fabric size. Structural footprint is 1' larger in each direction due to the nature of cantilever design. With eave heights ranging from 8’ to 16’ high, this structure is available with a Surface or in-ground Mount.
| Shadecloth Specifications | |||
|---|---|---|---|
| Tensile Strength: | ASTM 5035-95 | Warp lbf/inch 91 | Weft lbf/inch 162 |
| Fabric Mass Minimum: | 5.8 oz./Sq. Yd. | ||
| Life expectancy: | A minimum of 8 years of continuous exposure. | ||
| Fading: | Minimum fading allowed after 5 years. | ||
| Temperature Stability: | Minimum Temp 13o – Maximum Temp 176o | ||
| Fire Rating: | CA Fire Marshall Title 19 | ||
| Weather-ability: | ASTM G53 | ||
| Structure Specifications | |
|---|---|
Upright Posts: | All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness. |
| Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge. |
|
| All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate. | |
Top Frame: | The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame. |
Arm Support Fittings: | The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame. |
| Shade Tarp Material: | Material made of Shadeoline FR/Commercial 95 by Gale Pacific |
Test Result: | Flame Spread – 5 |
| Smoke Density – 95 | |
| UV Protection 95: | Wind Loads up to 95 mph with 3-second gusts up to 110 mph |
Warranty: | Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty |
| Steelwork 10 years | |
