T-Bar Cantilever Shade Structure

Specifications

Frame Color

Yellow, Blue, Orange, Fuschia, White, Brown, Burgundy, Teal Blue, Red, Sky Blue, Spring Green, Purple, Gray, Green, Tan, Black

Shade Fabric Color Options

Natural, Desert Sand, Yellow, Cayenne, Deep Ochre, Gun Metal, Steel Gray, Navy Blue, Turquoise, Aquatic Blue, Sky Blue, Rivergum Green, Brunswick Green, Black, Bottle Green, Purple, Silver, Sun Blaze, True Blue

Downloads:

Color Sheet Warranty

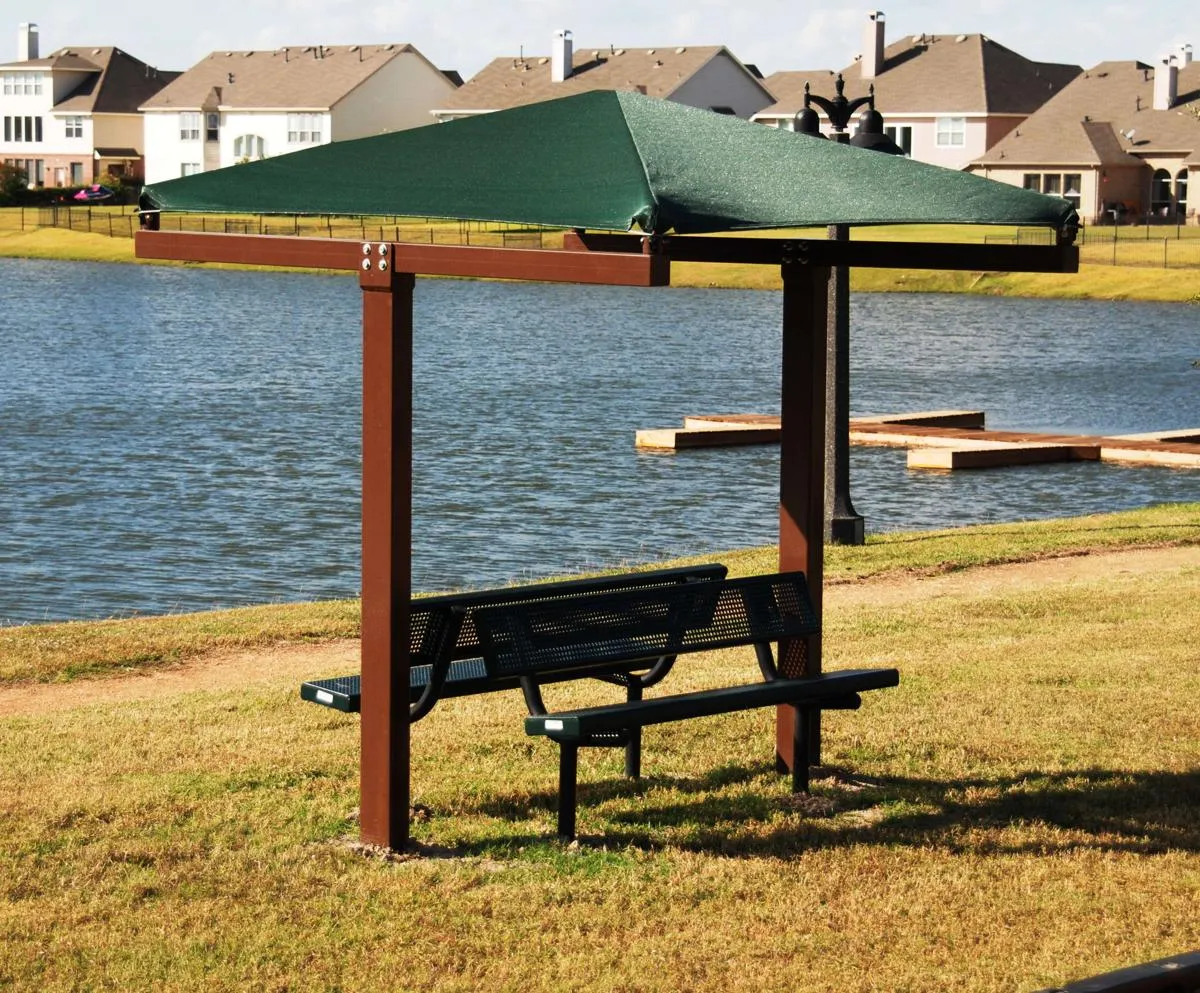

T-Bar Cantilever Shade Structure

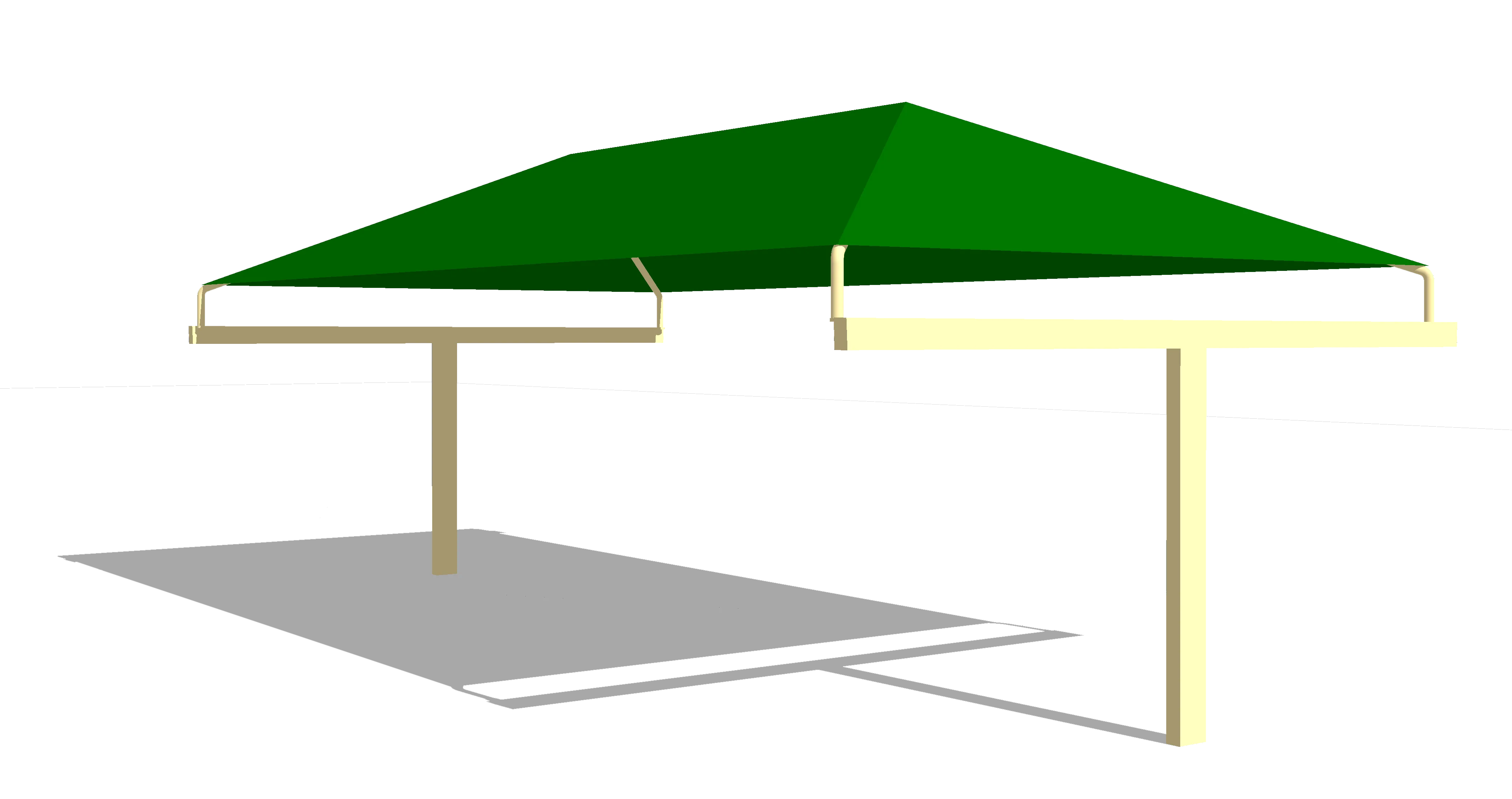

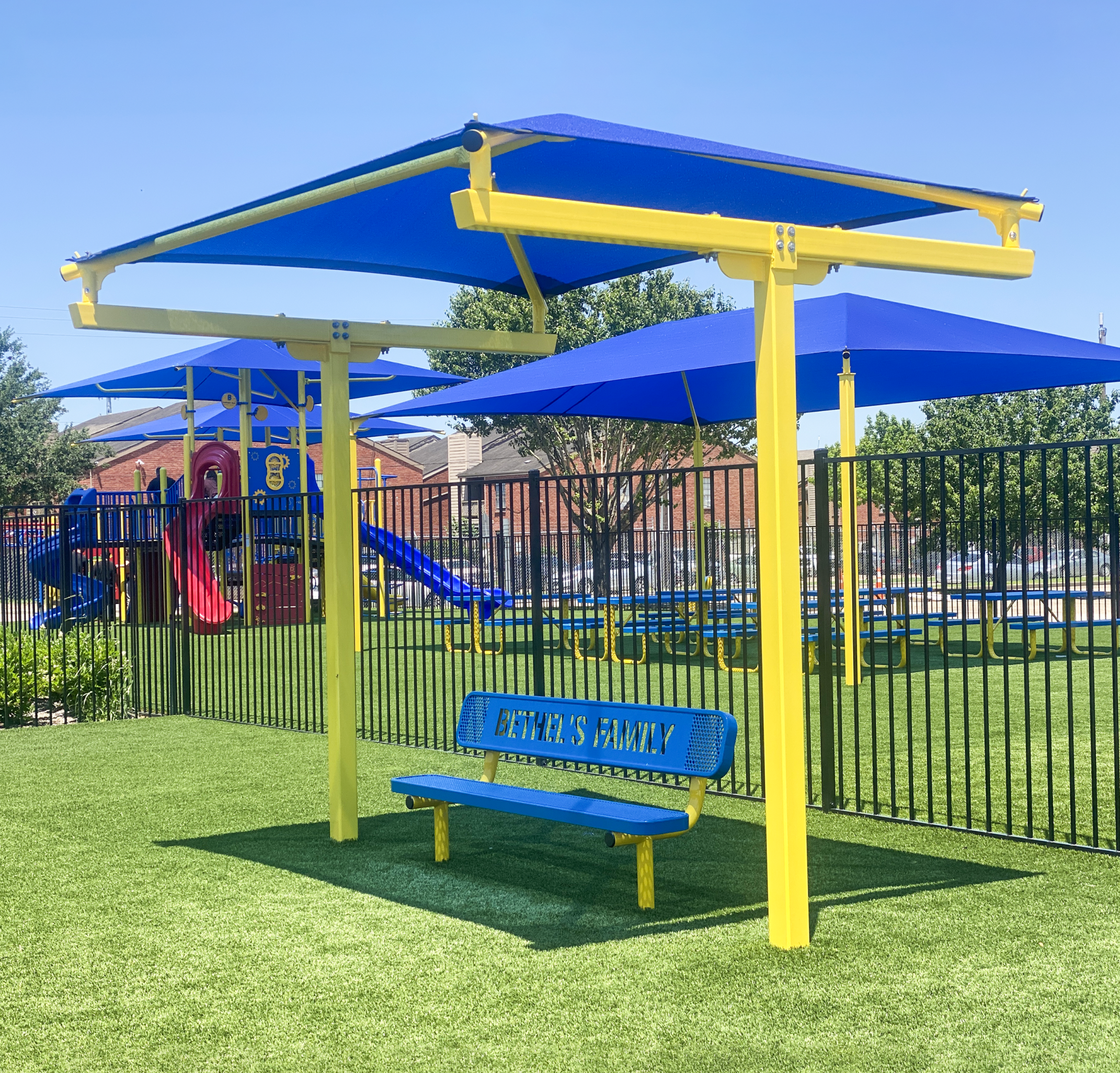

The T-Bar Cantilever Shade is the perfect solution for providing maximum shade coverage while minimizing ground space required for structural posts. Its’ sleek design utilizes two upright structural posts at the center of the structure to support the shade canopy. This alleviates the need for a center post and allows for more unobstructed shade coverage. Length and width purchasing dimensions reflect shade fabric size. Structural footprint is 1' longer due to the nature of T-Bar cantilever design. With eave heights ranging from 8’ to 14’ high, this structure is available with a Surface or in-ground Mount.

Applications

  • Gas Stations
  • Outdoor Seating Areas
  • Parking Lots
  • Automotive Facilities
Shadecloth Specifications
Tensile Strength:ASTM 5035-95Warp lbf/inch 91Weft lbf/inch 162
Fabric Mass Minimum:5.8 oz./Sq. Yd.
Life expectancy:A minimum of 8 years of continuous exposure.
Fading:Minimum fading allowed after 5 years.
Temperature Stability: Minimum Temp 13o – Maximum Temp 176o
Fire Rating:CA Fire Marshall Title 19
Weather-ability:ASTM G53
Structure Specifications




Upright Posts:
All uprights are 3.5” – 12“ round or square carbon steel pipe with wall thickness between 1/8“ and 1/4“ thickness.
Top Cover 3/8“ square plate and welded top sleeve galvanized tubing with wall thickness at 12 gauge.
All posts will have a baked on electro- statically applied TGIC polyester powder coating finish and a zinc rich epoxy primer coat over a sandblasted metal profile substrate.

Top Frame:
The top frame unitizes pipe collars SCH 40- 5” carbon steel, and either a 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing top frame. Super Span structures will use a 5 “ square 1/8 “ wall carbon steel tubing top frame.

Arm Support Fittings:
The arm supports have a combination of 2.5” O.D., 3.5” O.D., or 5.0” galvanized tubing with wall thickness at 11 gauge and accompanying sleeve with wall thickness at 12 gauge for the sleeves to connect arms and top frame.
Shade Tarp Material:Material made of Shadeoline FR/Commercial 95 by Gale Pacific

Test Result:
Flame Spread – 5
Smoke Density – 95
UV Protection 95:Windload with a 3 second gust at 139 MPH

Warranty:
Fabrics conditionally warranted for 5 years with a further 5 years prorated warranty
Steelwork 10 years
